In the contemporary flexible packaging industry, the pursuit of excellence is not just a matter of aesthetics, but of critical functionality. Optimising permeability has become the fundamental pillar for the preservation of fresh products, where every technical detail counts to extend shelf life and reduce food waste. While modified atmosphere packaging (MAP) is the standard for balancing the gas exchange between the product and the outside, the success of this technique is intrinsically dependent on the pinpoint accuracy of the perforation.
Spark Machinery has redefined this industry standard by integrating advanced machine vision systems, transforming the laser perforation process into a smart, autonomous solution capable of self-diagnosis in real time.
The challenge of conventional micro-perforation: mechanical vs. laser

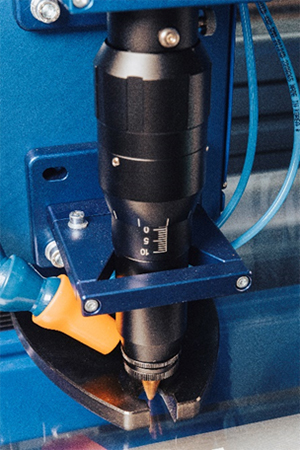

Traditional mechanical micro-perforation in converting lines often faces an invisible problem: tool wear and the lack of constant monitoring. Unlike the stability of laser systems, mechanical contact leads to serious inconsistencies due to component degradation or variations in plastic material. A poorly executed hole or an incomplete perforation can invalidate an entire coil, compromising the final result. Spark Machinery’s technology solves this challenge by integrating laser perforators equipped with high-resolution cameras that act as the clinical ‘eye’ of the process.
Ultra-high-speed scanning: 28 diagnostics per second
The processing capacity of this system represents a milestone in conversion engineering. The equipment can perform image acquisition in as little as 1 microsecond, allowing up to 28 full analyses per second to be conducted without slowing down the production line. This high-speed performance allows the system to reach processing speeds of up to 400m/min.
This frequency of analysis isn’t just a performance metric; it is the necessary foundation for quality control that goes far beyond simply detecting a hole. Vision software analyses accurate metrics at each individual hole to ensure the structural integrity and exact permeability of the film:
- Free Area Calculation – The open surface area is accurately measured to ensure that the gaseous flow (oxygen, carbon dioxide, and ethanol) is as expected for the specific product.

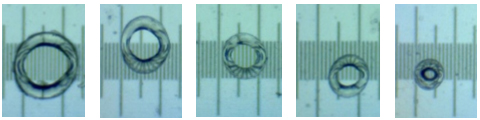

- Deviation from the Theoretical Circumference – The system evaluates the distance between the actual hole and the theoretical designed diameter. If a deformation is detected, the system autonomously modifies the parameters to correct it.
- Melting Ring Analysis – The percentage of the casting ring relative to the free zone is monitored. This control is vital to verify that the laser focus is optimal; otherwise, the system automatically adjusts it. This allows for the real-time adjustment of hole quality, which is an essential factor in many applications.
Cutting-edge innovations: Residual membranes and pre-excitation
To further raise the bar on quality, Spark Machinery has introduced advanced sensing and control capabilities that make a difference in technically demanding environments:
Residual membrane recognition (> 1 micron)
One of the most complex problems in laser micro perforation is the formation of residual membranes: extremely thin layers of polymer that have not completely evaporated. Although the hole appears open to the naked eye, this membrane acts as a partial barrier that drastically alters gas exchange. Spark Machinery’s vision system can recognise residual membranes with thicknesses even greater than 1 micron, allowing to correct perforations that, although existing, do not fulfil the permeability function.
Laser source pre-excitation
To ensure that the first pulse is as accurate as the last, source pre-excitation technology has been implemented. This allows the system to maintain a constant minimum level of pre-excitation, maximising the source’s efficiency and responsiveness. By keeping the gas inside the laser tube in a quasi-ignition state, it provides immediate response and superior energy stability from millisecond zero. This eliminates the ‘missing point’ effect or weak perforations at the start of work cycles or after technical stops, ensuring absolute homogeneity over the entire length of the coil.

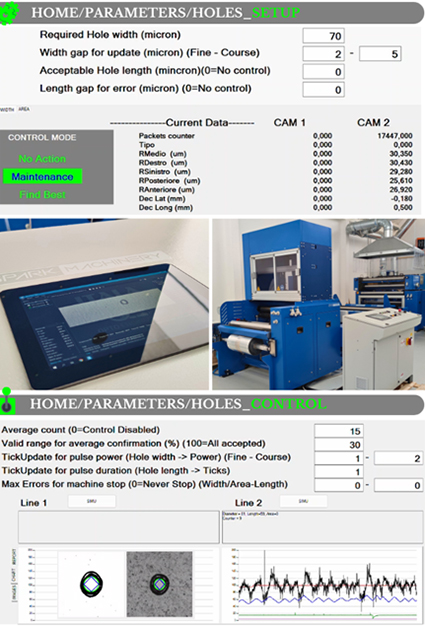

The ‘brain’ of the system: Instant self-correction
Spark Machinery’s real competitive advantage lies not only in detecting the error, but in preventing it from becoming waste. When the analyses detect a slight deviation from the set parameters, the machine does not stop. Instead, the control system adjusts in real time laser power and firing time (energy and pulse time).
This instant feedback compensates for external variables, such as minimal variations in material thickness, blend, and temperature, ensuring that 100% of the production meets the strictest technical specifications in the plastics sector.
Benefits for the converter and sustainability
The implementation of smart laser micro perforation offers tangible benefits that directly impact profitability:
- Scrap Reduction – By correcting in real-time, the production of non-conforming material is eliminated.
- Sustainability – By optimising the shelf life of fresh produce (strawberries, salads, meats), food waste at the point of sale and in the consumer’s home is significantly reduced.
- Digital Excellence – The ability to generate quality reports for each reel offers total traceability, a requirement increasingly demanded by large consumer brands.
Conclusions
With this technology, Spark Machinery not only offers machinery; it provides a guarantee of stability and efficiency in production. By elevating laser micro perforation to a new level of digital excellence, the company enables converters to meet the packaging challenges of the future with tools that guarantee precision, autonomy, and non-negotiable quality.
Key technical details:
- Capture speed – 1μs.
- Inspection frequency – 28Hz (analysis/second).
- Membrane detection – > 1 micron thick.
- Control variables – Power, pulse time, and focus.
- Integration – Available as a stand-alone unit with an integrated unwinder and rewinder, or custom designed for seamless integration into an existing production line.
- Processing speed – up to 400Mt/min
